JUPITER FINN IS COMPLETELY NEW STANDARD VERSION

COLOR

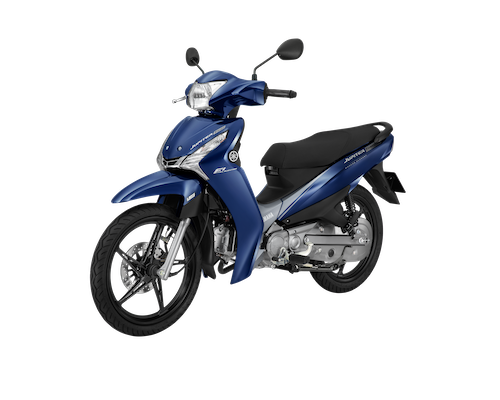

JUPITER FINN IS COMPLETELY NEW STANDARD VERSION Blue gray
Contact Us
Blue gray

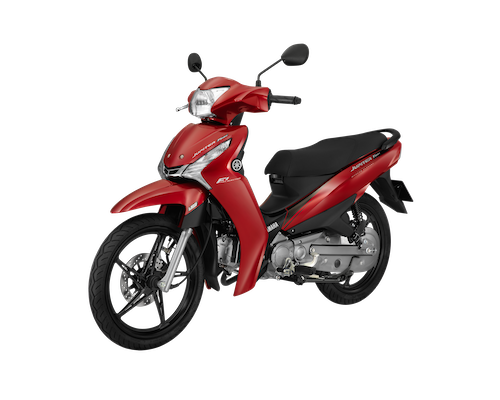

JUPITER FINN IS COMPLETELY NEW STANDARD VERSION Red - Black
Contact Us
Red - Black
JUPITER FINN IS COMPLETELY NEW STANDARD VERSION Black gray
Contact Us
Black gray

TECHNICAL SPECIFICATIONS

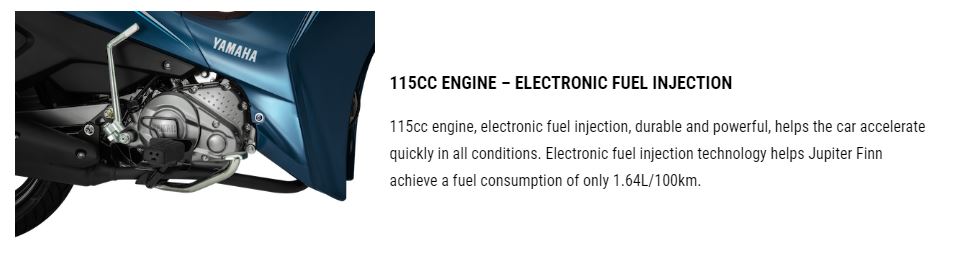

 Engine
Type 4 stroke, 2 valves, SOHC, air cooled
Cylinder arrangement Single cylinder
Cylinder capacity (CC) 113.7 cm3
Piston diameter and stroke 50.0 x 57.9 mm
Compression ratio 9.3 : 1
Maximum capacity 6.6 kW (9.0 PS)/7000 rpm
Maximum torque 9.2 Nm (0.9 kgf/m)/5500 rpm
System starts Electric and pedal lever
Lubrication systems Crankcase wet, pressure
Engine oil capacity 1.0L
Petrol tank capacity 4.0L
Fuel consumption (l/100km) 1.64
Ignition system TCI (Transistor controlled ignition)
Primary and secondary transmission ratio 2,900 (58/20)/2,857 (40/14)
Clutch system Multi-disc, wet type centrifuge
Powertrain type 4 rotating numbers
Chassis
Frame type Underbone
Deviation of steering axis 26°20/73 mm

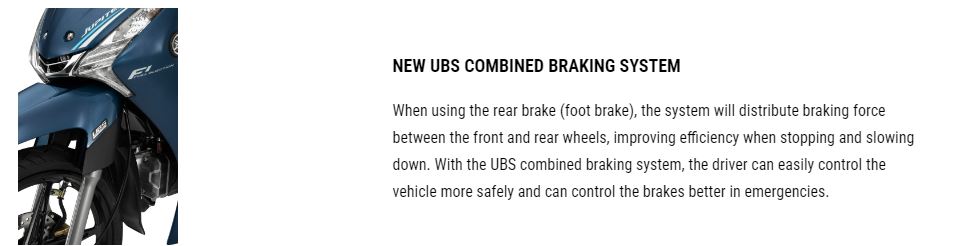

Front brake Single hydraulic disc
Rear brake The drum is empty
Front tire 70/90-17M/C 38P (with tube)
Rear tire 80/90-17M/C 50P (with tube)
Front shock absorber Telescopic fork
Rear shock absorber Oil spring damper
Headlight 12V 35W/35W
Size
Dimensions (length x width x height) 1940 x 705 x 1095 mm

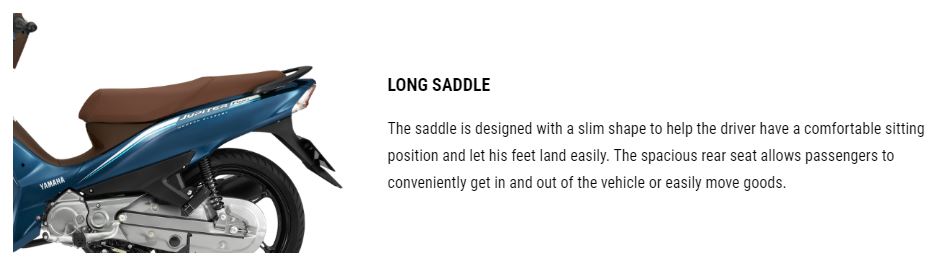

Saddle height 775 mm
Vehicle chassis height 155 mm
Distance between 2 wheel axles 1235 mm
Wet weight 100 kg
Guarantee
Warranty period 3 years/ 30,000 km (Whichever comes first)

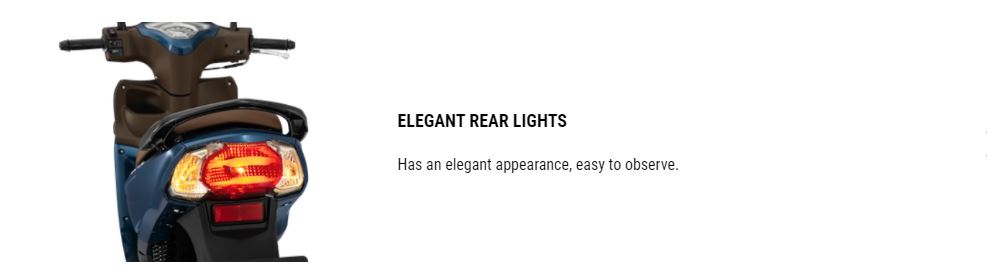

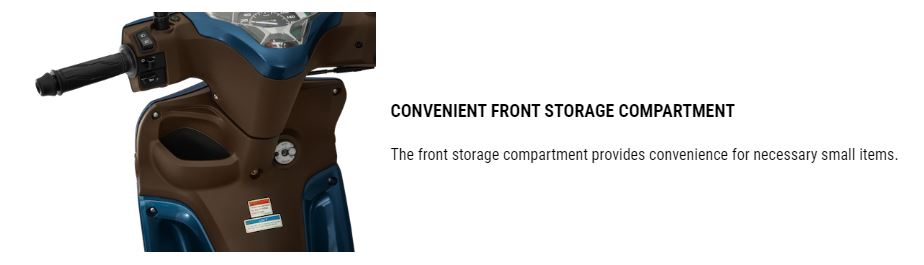

KEY FEATURES
